Knowledge Nugget

Eclipse Ditto in context

recap: device data as APIs

{
  "thingId": "io.beyonnex.srt:my-srt",
  "policyId": "io.beyonnex.room:my-room",
  "attributes": {
    "serial": "4711-0815",
    "location": {
      "buildingId": "nice-building"
    }
  },
  "features": {
    "temp": {
      "properties": {
        "value": 23.42
      }
    }
  }
}

GET/PUT/PATCH/DELETE /things/io.beyonnex.srt:my-srt
 /things/io.beyonnex.srt:my-srt/thingId
 /things/io.beyonnex.srt:my-srt/policyId
 /things/io.beyonnex.srt:my-srt/attributes
 /things/io.beyonnex.srt:my-srt/attributes/serial
 /things/io.beyonnex.srt:my-srt/attributes/location
 /things/io.beyonnex.srt:my-srt/attributes/location/buildingId


 /things/io.beyonnex.srt:my-srt/features
 /things/io.beyonnex.srt:my-srt/features/temp
 /things/io.beyonnex.srt:my-srt/features/temp/properties
 /things/io.beyonnex.srt:my-srt/features/temp/properties/value

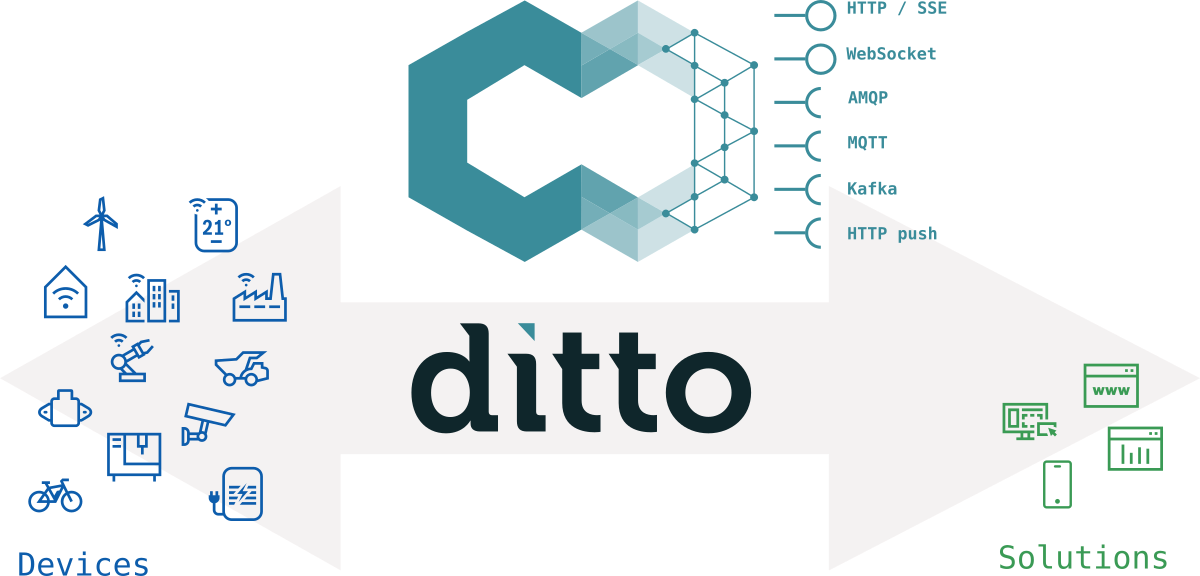

in a nutshell

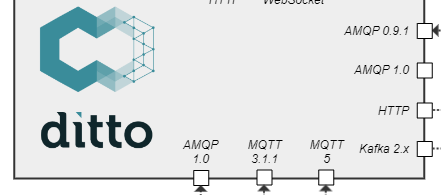

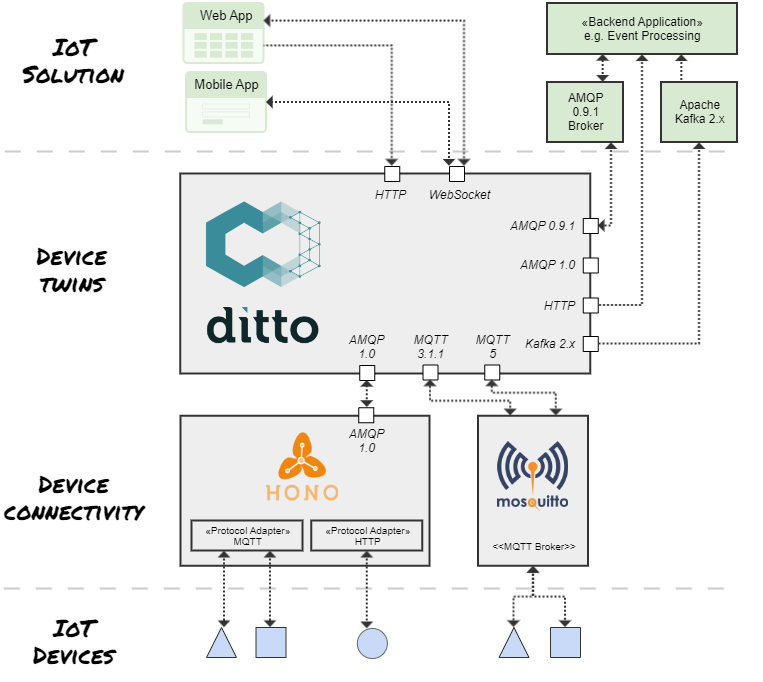

let's talk about "connections"

use cases

• provide connectivity to IoT devices
  • abstracting from different IoT protocols
  • transforming payloads
• as IoT middleware, provide integration with existing IT landscape and external systems, e.g.:
  • building up sensor timeseries in a TSDB
  • copying data to a datalake
  • providing facade for other HTTP APIs
  • transforming payloads

features

• Ditto connectivity takes care of
  • connection establishment
  • reliably reconnecting upon reset
  • transforming payloads, even executing dynamic JS based mappers
  • qos (e.g. "at least once" processing)
  • consumption throttling
  • providing metrics, logs
  • stuff like SSH tunneling,
    for HTTP: OAuth2.0 auth, HMAC signing

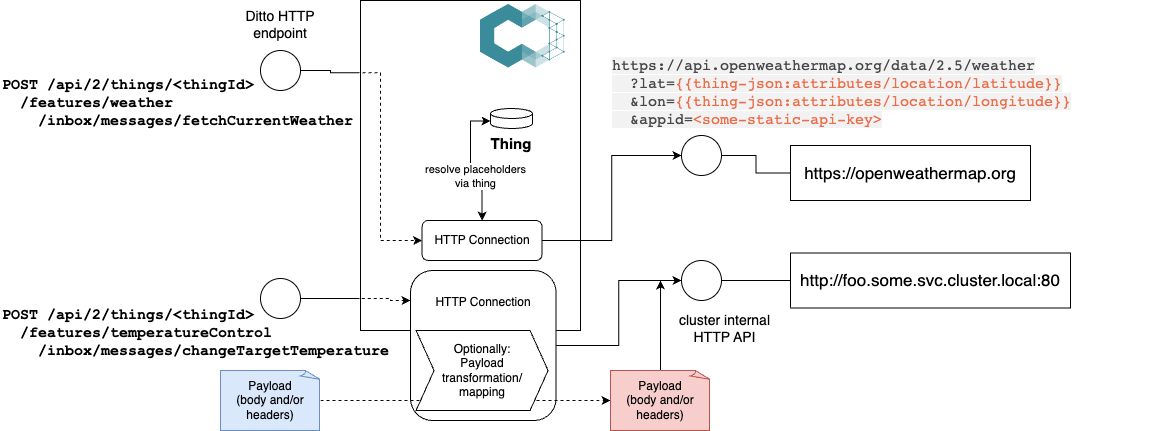

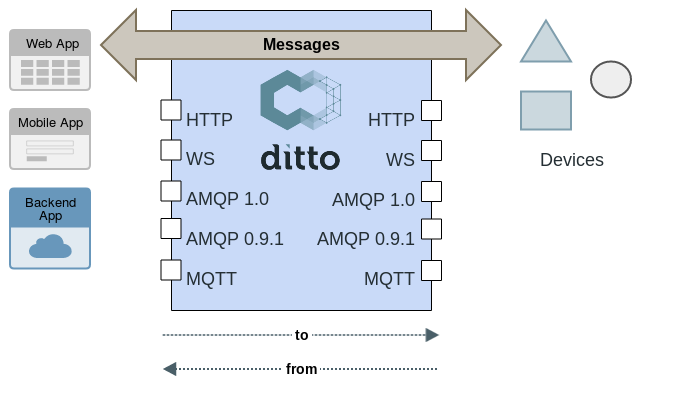

facade to external APIs

example of HTTP APIs

Ditto brokers messages

• correlating responses back to requests
• but also: abstracting API invocation via other protocols (e.g. invoke MQTT API via HTTP)
• propagating "Trace context"

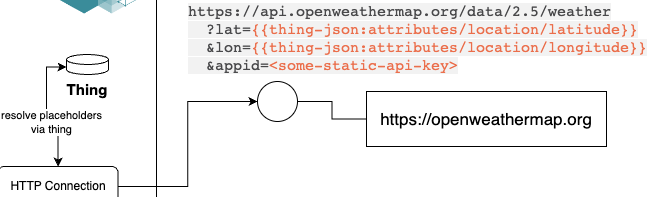

facade for public/ext APIs

Benefits:

• enhancing "digital twin" with other service's offerings
• providing the "context" of the thing to enhance API call
• transforming payload to what external API needs

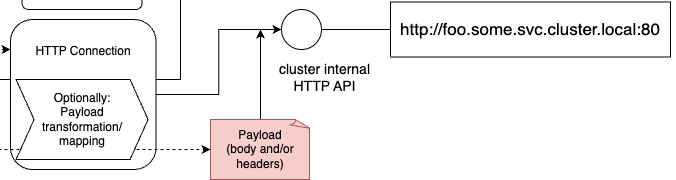

facade for internal APIs

Benefits:

• internal APIs do not need to provide own auth*
• access control fully enforced by Ditto
• foster use "microservices" pattern providing single aspects (e.g. also AWS lambda)

mapping / transformation

what can ditto transform?

• protocol headers:
  • accessing placeholders to inject in headers
  • mapping protocol header from consumed messages to internal headers
  • e.g. HTTP headers, Kafka message headers, MQTT user properties
• message payloads:
  • using existing payload mappers
  • using dynamic JS-based payload mapper, providing own mapping script

header mapping: placeholders

{{ thing:id }} 									# affected (e.g. modified) thing id
{{ feature:id }} 								# affected feature id
{{ header:[header-name] }}  		# internal or external header value, depending on which "direction" of mapping
{{ topic:full }}								# the full Ditto Protocol topic, e.g.: io.beyonnex/srt-123/things/twin/events/merged
{{ topic:entityName }}					# the entity name of the Ditto Protocol topic, e.g.: srt-123
{{ topic:action }}							# the action of the Ditto Protocol topic, e.g.: merged
{{ thing-json:[json-pointer] }}	# the content of the JSON field in the affected thing, identified by the JSON pointer
{{ time:now }}									# the current timestamp in ISO-8601 format


header mapping: functions

now the fun starts - what if transforming headers need to be done? sure, provide a function library

{{ header:foo | fn:default('fallback') }}		# provide a default value if placeholder not existing
{{ header:foo | fn:substring-before(':') }}	# select parts of a string
{{ header:foo | fn:substring-after(':') }}	# select parts of a string
{{ header:foo | fn:replace('foo','bar') }}	# replace characters in a string
{{ header:foo | fn:lower() }}								# lowercase
{{ header:foo | fn:upper() }}								# uppercase
{{ header:foo | fn:trim() }}								# trim from trailing/appended whitespaces
{{ header:foo | fn:split(',') }}						# split string by delimiter
{{ header:foo | fn:join(';') }}							# join array into a string
{{ header:foo | fn:url-encode() }}					# URL encode string


functions can - obviously - be combined with pipes |

payload mapping

• inbound messages to be understood by Ditto:
  • use JavaScript mapper with custom script
  • provide Java based mapper on classpath of Ditto, e.g. using protobuf
• outbound messages to be understood by others:
  • Normalized mapper
  • use JavaScript mapper with custom script
  • provide Java based mapper on classpath of Ditto, e.g. using protobuf
